AGIE EXCELLENCE 2F Ecut USED Wire Cut EDM Electrical Discharge Machine 2005 FOR SALE

Equipment can be inspected under power!

Plan you inspection trip today.

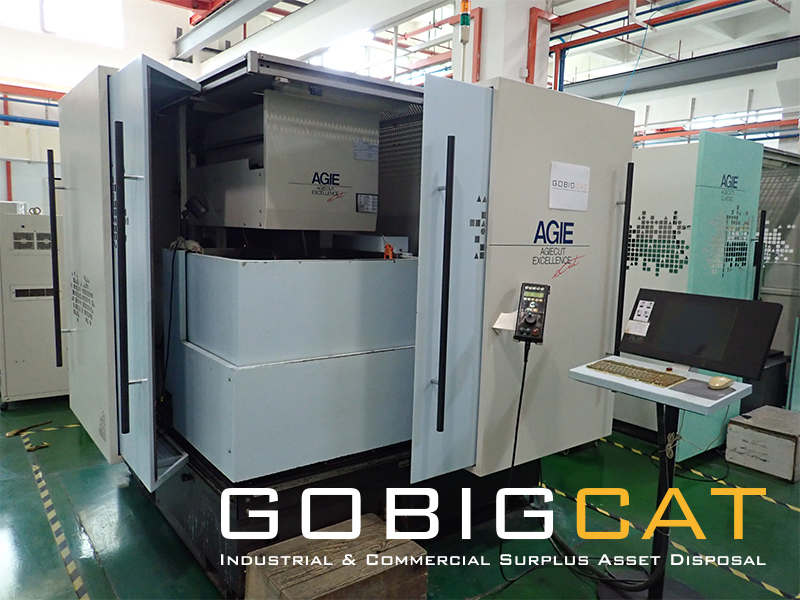

AGIE EXCELLENCE 2F Ecut (YOM 2005) Wire Cut Machine

Asset Info:

Yom: 2005
Model: EXCELLENCE 2F Ecut

- Travels X/Y/Z 350 x 250 x 256 mm

- Machine tool in cast C-frarne construction

- AGIEVISION 4 control unit Multitasking operating system with integrated object-oriented operator-machine interface

- AGIE IPG "Intelligent Power Generation" generator and eCut technology VARIOCUT, PURECUT

- SF-Hodule (Ra 0.1um) finest finishing-power module

- DYNAMIC CORNER CONTROL dynamic path optimization and process adaptation in radii

- WIRE BENDIND CONTROL real time detection and correction of the wire bending

- AGIECONIC PLUS, accurate taper cut

- Operating console with 15" LCD color display push-type keyboard and mouse

- HANDBOX with AGIEJOGGER electronic handweel and LC-Display

- Dielectric unit with 4 filter canisters, (8 cartridges) cooling with external cooling unit and deionizing unit

- AGIEJET automatic wire threading system for wire 0.03-0.33 mm

- Wire drive for wire reel up to 25kg

- Wire extraction with wire chopper and removable container on rollers

- Combination wire guide system(Opea V-Guide Patented) for all wires, for cylindrical and tapes cutting of max. ±30°

- Dual measuring system for the X-Y axes

Pa = 4pm, Ps =1pm Pa =1.359µm, Ps =0.380pm

- Smallest programmable step 0.0001mm

- Drop worktank for submerged erosion with automatic level regulation

- AGIE Clamping frame

- Electronic machine correction of all axes

- AGIESETUP 30 pickup cycles for automatic determination of workpiece plane and position

- GEOEDITOR 20 on-board geometry programming

- TECCUT technology selection and modification based on machining objectives

- GRAFICHECK machining simulation 2D and 3D

- ISOCONVERTER translator for ISO PPlOO and PP123 codes

- CAMLINK for job-specific data import from CAD/CAM

- USERSEQUENCE predefined and user defined machining strategies

- PIECEINSERT quickly insert rush orders without effort

- DNC interface with transmission protocols Xon/Xoff and LSV2

- Rescue strategies: rethreading after wire break, restart after power failure

- 2 serial interfaces RS 232C for DNC and host computer

- 1 parallel interface for printer
